- Hands-free operation enables all four tires to be purged and inflated automatically, allowing the tech to do other things while the machine does its work.
- Two purge and inflation cycles are completed in only 7 to 12 minutes.
- Controller can be set for 1 to 5 purge cycles.
- Uses tanks of pure nitrogen, available from your local gas supplier.
- Integrated dryer ensures moisture is removed from the nitrogen supply before entering the tires.
- Option of high quality, durable 25′ no-kink coiled hoses or 15′ straight rubber hoses.
- Highest quality locking air chucks make it quick and easy to attach hoses to valve stems, with no leaks.
- Lightweight, waterproof, durable resin case made of patented material including polypropylene, glass fiber and rubber. Case has 4 wheels and 2 handles.
- Controller flips up from the case to operate; locks down during transportation.
- Quick connect fittings for all hoses.
- Hoses are stored in the case during transportation.
- User-friendly controls.
- Unit comes assembled and ready-to-use. Avoids costly and time consuming installation as with competing equipment.
- Services cars and light trucks.
- 1-year warranty.
Nitrogen Tire Inflation and Purging System Model Q500 for Racing
$4,595.00
The portable Q500 Nitrogen Tire System is designed for the motorsports / racing industry and is capable of inflating and purging 4 tires at once in under 10 minutes hands-free with pure nitrogen from a cylinder tank. On average, you’ll use 60% less nitrogen at the track than with other purging systems!
The unit is enclosed in a lightweight but heavy-duty virtually indestructible case with 4 wheels and 2 handles, making it easy to transport. The faceplate pulls up from a latched position inside the case to a 70 degree angle, making it easy to see and operate the controller.

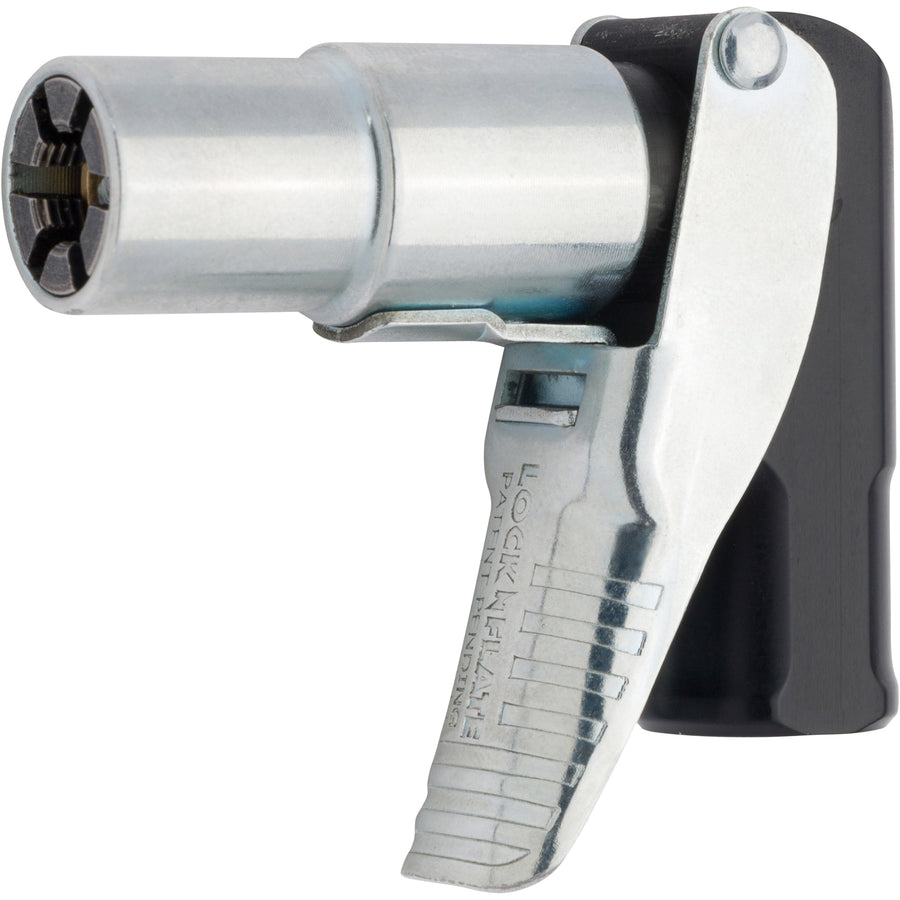

Included are 1 15′ supply hose and 4 tire hoses (straight or coiled) with premium LockNFlate chucks installed. LockNFlate chucks are the highest quality chucks on the market, locking tightly onto each valve stem with no leaks.
To operate, simply connect the unit to 120-volt power, connect the hoses to up to 4 tires, set the desired pressure, and the machine does all the inflation and purging work automatically with up to 5 purge cycles. Set it and forget it!
Note: This unit does not apply vacuum to tires. As a result, tire manufacturer warranties (which may be voided if a tire is vacuumed down) remain intact. The unit allows pressure to naturally escape the tire during the purge cycles.
- Power: Standard 110v
- Max inflation pressure: 80psi
- Dimensions: 27.16 x 17.72 x 11.85 inches
- Weight: 64lbs
- Hoses: Straight (15′) or coiled (25′ fully extended and braided for durability) hoses with quick connect fittings
- Capacity: K-sized cylinder tank (not included) services approximately 60 passenger/light truck sized tires with 2 purge cycles (dependent on tire size and inflation pressure)
- Dryer: Desiccant beads change color to indicate saturation. Beads can then be baked to remove moisture and reused.
- Four 25′ coiled hoses or four 15′ straight hoses with premium LockNFlate locking air chucks
- One 15′ supply hose (from regulator to controller)
- Integrated dryer with replaceable desiccant
- 1-year warranty certificate
- Cylinder tank and cover not included
- Regulator not included
